Baudouin
Baudouin Series Generators
Our Baudouin Series brand quality generators and their contents
STANDARD FEATURES
- Pre-heater
- Battery and cables
- Electronic battery charger
- Fuel tank integrated into the chassis
- Flexible fuel hoses and oil drain valve
- Welded steel sheet, electrostatic powder painted chassis
- Stainless galvanized steel cabin design
OPTIONAL FEATURES
- Soundproof cabin
- Transfer board
- Fuel water separator filter
- Alternator output switch
- Fuel tank heater
- Oil heater
- External fuel tank and transfer pump
- Remote monitoring and control
- Synchronization systems
- Special type exhaust silencer
- Trailer
DLTJ-B 20
DLTJ-B 25
DLTJ-B 35
DLTJ-B 44
DLTJ-B 50
DLTJ-B 55
DLTJ-B 72
DLTJ-B 88
DLTJ-B 110
DLTJ-B 150
DLTJ-B 165
DLTJ-B 220
DLTJ-B 250
DLTJ-B 275
DLTJ-B 300
DLTJ-B 350
DLTJ-B 400
DLTJ-B 440
DLTJ-B 500
DLTJ-B 550
DLTJ-B 660
DLTJ-B 725
DLTJ-B 750
DLTJ-B 825
DLTJ-B 900
DLTJ-B 1000
DLTJ-B 1125
DLTJ-B 1250
DLTJ-B 20
OUTPUT VALUES
| Standby Power | ||
|---|---|---|
| kVA | kW | Ampere |
| 20 | 16 | 29 |
| Prime Power | ||
|---|---|---|
| kVA | kW | Ampere |
| 18 | 15 | 26 |
DIESEL ENGINE
The latest technology engine brands, which comply with ISO 8528, ISO 3046, BS 5514, DIN 6271 standards, have low fuel consumption, are mounted on the fuel pump, and have mechanical or electronic type governors, are used.
| Brand | Baudouin |
| Model | 4M06G20/5 |
| Max. Total Output Power (Standby kW/Prime kW) | 20/18 |
| Cylinder Volume (lt) | 2.3 |
| Cylinder Arrangement | 4 Single Row |
| Bore x Stroke (mm*mm) | 89*92 |
| Governor Type | Electronic |
SIZE AND WEIGHT
| Cabin Group | |
| Width (mm) | 1000 |
| Length (mm) | 1850 |
| Height (mm) | 1300 |
| Weight (Kg) | 950 |
| Fuel Tank Capacity (Lt) | 125 |
| Group Without Cabin | |
| Width (mm) | 1000 |
| Length (mm) | 1500 |
| Height (mm) | 1200 |
| Weight (Kg) | 750 |
| Fuel Tank Capacity (Lt) | 125 |
DLTJ-B 25
OUTPUT VALUES
| Standby Power | ||
|---|---|---|
| kVA | kW | Ampere |
| 25 | 20 | 36 |
| Prime Power | ||
|---|---|---|
| kVA | kW | Ampere |
| 23 | 18 | 33 |
DIESEL ENGINE
The latest technology engine brands, which comply with ISO 8528, ISO 3046, BS 5514, DIN 6271 standards, have low fuel consumption, are mounted on the fuel pump, and have mechanical or electronic type governors, are used.| Brand | Baudouin |
| Model | 4M06G25/5 |
| Max. Total Output Power (Standby kW/Prime kW) | 25/23 |
| Cylinder Volume (lt) | 2.3 |
| Cylinder Arrangement | 4 Single Row |
| Bore x Stroke (mm*mm) | 89*92 |
| Governor Type | Electronic |
SIZE AND WEIGHT
| Cabin Group | |
| Width (mm) | 1000 |
| Length (mm) | 1850 |
| Height (mm) | 1300 |
| Weight (Kg) | 950 |
| Fuel Tank Capacity (Lt) | 125 |
| Group Without Cabin | |
| Width (mm) | 1000 |
| Length (mm) | 1500 |
| Height (mm) | 1200 |
| Weight (Kg) | 750 |
| Fuel Tank Capacity (Lt) | 125 |
DLTJ-B 35
OUTPUT VALUES
| Standby Power | ||
|---|---|---|
| kVA | kW | Ampere |
| 35 | 28 | 51 |
| Prime Power | ||
|---|---|---|
| kVA | kW | Ampere |
| 32 | 25 | 46 |
DIESEL ENGINE
The latest technology engine brands, which comply with ISO 8528, ISO 3046, BS 5514, DIN 6271 standards, have low fuel consumption, are mounted on the fuel pump, and have mechanical or electronic type governors, are used.
| Brand | Baudouin |
| Model | 4M06G35/5 |
| Max. Total Output Power (Standby kW/Prime kW) | 33/30 |
| Cylinder Volume (lt) | 2.3 |
| Cylinder Arrangement | 4 Single Row |
| Bore x Stroke (mm*mm) | 89*92 |
| Governor Type | Electronic |
SIZE AND WEIGHT
| Cabin Group | |
| Width (mm) | 1000 |
| Length (mm) | 2150 |
| Height (mm) | 1500 |
| Weight (Kg) | 1000 |
| Fuel Tank Capacity (Lt) | 135 |
| Group Without Cabin | |
| Width (mm) | 1000 |
| Length (mm) | 1700 |
| Height (mm) | 1250 |
| Weight (Kg) | 800 |
| Fuel Tank Capacity (Lt) | 135 |
DLTJ-B 44
OUTPUT VALUES
| Standby Power | ||
|---|---|---|
| kVA | kW | Ampere |
| 44 | 35 | 64 |
| Prime Power | ||
|---|---|---|
| kVA | kW | Ampere |
| 40 | 32 | 58 |
DIESEL ENGINE
The latest technology engine brands, which comply with ISO 8528, ISO 3046, BS 5514, DIN 6271 standards, have low fuel consumption, are mounted on the fuel pump, and have mechanical or electronic type governors, are used.
| Brand | Baudouin |
| Model | 4M06G44/5 |
| Max. Total Output Power (Standby kW/Prime kW) | 41/37 |
| Cylinder Volume (lt) | 2.3 |
| Cylinder Arrangement | 4 Single Row |
| Bore x Stroke (mm*mm) | 89*92 |
| Governor Type | Electronic |
SIZE AND WEIGHT
| Cabin Group | |
| Width (mm) | 1000 |
| Length (mm) | 2150 |
| Height (mm) | 1500 |
| Weight (Kg) | 1000 |
| Fuel Tank Capacity (Lt) | 135 |
| Group Without Cabin | |
| Width (mm) | 1000 |
| Length (mm) | 1700 |
| Height (mm) | 1250 |
| Weight (Kg) | 800 |
| Fuel Tank Capacity (Lt) | 135 |
DLTJ-B 50
OUTPUT VALUES
| Standby Power | ||
|---|---|---|
| kVA | kW | Ampere |
| 50 | 40 | 72 |
| Prime Power | ||
|---|---|---|
| kVA | kW | Ampere |
| 45 | 36 | 66 |
DIESEL ENGINE
The latest technology engine brands, which comply with ISO 8528, ISO 3046, BS 5514, DIN 6271 standards, have low fuel consumption, are mounted on the fuel pump, and have mechanical or electronic type governors, are used.
| Brand | Baudouin |
| Model | 4M06G50/5 |
| Max. Total Output Power (Standby kW/Prime kW) | 48/44 |
| Cylinder Volume (lt) | 2.3 |
| Cylinder Arrangement | 4 Single Row |
| Bore x Stroke (mm*mm) | 89*92 |
| Governor Type | Electronic |
SIZE AND WEIGHT
| Cabin Group | |
| Width (mm) | 1000 |
| Length (mm) | 2350 |
| Height (mm) | 1600 |
| Weight (Kg) | 1000 |
| Fuel Tank Capacity (Lt) | 160 |
| Group Without Cabin | |
| Width (mm) | 1000 |
| Length (mm) | 1900 |
| Height (mm) | 1250 |
| Weight (Kg) | 800 |
| Fuel Tank Capacity (Lt) | 160 |
DLTJ-B 55
OUTPUT VALUES
| Standby Power | ||
|---|---|---|
| kVA | kW | Ampere |
| 55 | 44 | 79 |
| Prime Power | ||
|---|---|---|
| kVA | kW | Ampere |
| 50 | 40 | 72 |
DIESEL ENGINE
The latest technology engine brands, which comply with ISO 8528, ISO 3046, BS 5514, DIN 6271 standards, have low fuel consumption, are mounted on the fuel pump, and have mechanical or electronic type governors, are used.
| Brand | Baudouin |
| Model | 4M06G55/5 |
| Max. Total Output Power (Standby kW/Prime kW) | 53/48 |
| Cylinder Volume (lt) | 2.3 |
| Cylinder Arrangement | 4 Single Row |
| Bore x Stroke (mm*mm) | 89*92 |
| Governor Type | Electronic |
SIZE AND WEIGHT
| Cabin Group | |
| Width (mm) | 1000 |
| Length (mm) | 2350 |
| Height (mm) | 1600 |
| Weight (Kg) | 1000 |
| Fuel Tank Capacity (Lt) | 160 |
| Group Without Cabin | |
| Width (mm) | 1000 |
| Length (mm) | 1900 |
| Height (mm) | 1250 |
| Weight (Kg) | 800 |
| Fuel Tank Capacity (Lt) | 160 |
DLTJ-B 72
OUTPUT VALUES
| Standby Power | ||
|---|---|---|
| kVA | kW | Ampere |
| 72 | 58 | 104 |
| Prime Power | ||
|---|---|---|
| kVA | kW | Ampere |
| 65 | 52 | 94 |
DIESEL ENGINE
The latest technology engine brands, which comply with ISO 8528, ISO 3046, BS 5514, DIN 6271 standards, have low fuel consumption, are mounted on the fuel pump, and have mechanical or electronic type governors, are used.
| Brand | Baudouin |
| Model | 4M10G70/5 |
| Max. Total Output Power (Standby kW/Prime kW) | 66/60 |
| Cylinder Volume (lt) | 4.1 |
| Cylinder Arrangement | 4 Single Row |
| Bore x Stroke (mm*mm) | 105*130 |
| Governor Type | Electronic |
SIZE AND WEIGHT
| Cabin Group | |
| Width (mm) | 1000 |
| Length (mm) | 2750 |
| Height (mm) | 1700 |
| Weight (Kg) | 1500 |
| Fuel Tank Capacity (Lt) | 200 |
| Group Without Cabin | |
| Width (mm) | 1100 |
| Length (mm) | 2300 |
| Height (mm) | 1350 |
| Weight (Kg) | 1150 |
| Fuel Tank Capacity (Lt) | 200 |
DLTJ-B 88
OUTPUT VALUES
| Standby Power | ||
|---|---|---|
| kVA | kW | Ampere |
| 88 | 70 | 130 |
| Prime Power | ||
|---|---|---|
| kVA | kW | Ampere |
| 80 | 64 | 118 |
DIESEL ENGINE
The latest technology engine brands, which comply with ISO 8528, ISO 3046, BS 5514, DIN 6271 standards, have low fuel consumption, are mounted on the fuel pump, and have mechanical or electronic type governors, are used.
| Brand | Baudouin |
| Model | 4M10G88/5 |
| Max. Total Output Power (Standby kW/Prime kW) | 80/73 |
| Cylinder Volume (lt) | 4.1 |
| Cylinder Arrangement | 4 Single Row |
| Bore x Stroke (mm*mm) | 105*130 |
| Governor Type | Electronic |
SIZE AND WEIGHT
| Cabin Group | |
| Width (mm) | 1100 |
| Length (mm) | 2750 |
| Height (mm) | 1700 |
| Weight (Kg) | 1600 |
| Fuel Tank Capacity (Lt) | 200 |
| Group Without Cabin | |
| Width (mm) | 1100 |
| Length (mm) | 2300 |
| Height (mm) | 1350 |
| Weight (Kg) | 1250 |
| Fuel Tank Capacity (Lt) | 200 |
DLTJ-B 110
OUTPUT VALUES
| Standby Power | ||
|---|---|---|
| kVA | kW | Ampere |
| 110 | 88 | 130 |
| Prime Power | ||
|---|---|---|
| kVA | kW | Ampere |
| 100 | 80 | 118 |
DIESEL ENGINE
The latest technology engine brands, which comply with ISO 8528, ISO 3046, BS 5514, DIN 6271 standards, have low fuel consumption, are mounted on the fuel pump, and have mechanical or electronic type governors, are used.
| Brand | Baudouin |
| Model | 4M10G110/5 |
| Max. Total Output Power (Standby kW/Prime kW) | 100/91 |
| Cylinder Volume (lt) | 4.1 |
| Cylinder Arrangement | 4 Single Row |
| Bore x Stroke (mm*mm) | 105*130 |
| Governor Type | Electronic |
SIZE AND WEIGHT
| Cabin Group | |
| Width (mm) | 1100 |
| Length (mm) | 3050 |
| Height (mm) | 1700 |
| Weight (Kg) | 1750 |
| Fuel Tank Capacity (Lt) | 200 |
| Group Without Cabin | |
| Width (mm) | 1100 |
| Length (mm) | 2600 |
| Height (mm) | 1400 |
| Weight (Kg) | 1400 |
| Fuel Tank Capacity (Lt) | 200 |
DLTJ-B 150
OUTPUT VALUES
| Standby Power | ||
|---|---|---|
| kVA | kW | Ampere |
| 150 | 120 | 173 |
| Prime Power | ||
|---|---|---|
| kVA | kW | Ampere |
| 136 | 109 | 158 |
DIESEL ENGINE
The latest technology engine brands, which comply with ISO 8528, ISO 3046, BS 5514, DIN 6271 standards, have low fuel consumption, are mounted on the fuel pump, and have mechanical or electronic type governors, are used.
| Brand | Baudouin |
| Model | 6M11G150/5 |
| Max. Total Output Power (Standby kW/Prime kW) | 140/127 |
| Cylinder Volume (lt) | 6.75 |
| Cylinder Arrangement | 6 Single Row |
| Bore x Stroke (mm*mm) | 105*130 |
| Governor Type | Electronic |
SIZE AND WEIGHT
| Cabin Group | |
| Width (mm) | 1100 |
| Length (mm) | 3050 |
| Height (mm) | 1700 |
| Weight (Kg) | 1750 |
| Fuel Tank Capacity (Lt) | 240 |
| Group Without Cabin | |
| Width (mm) | 1100 |
| Length (mm) | 2600 |
| Height (mm) | 1400 |
| Weight (Kg) | 1400 |
| Fuel Tank Capacity (Lt) | 240 |
DLTJ-B 165
OUTPUT VALUES
| Standby Power | ||
|---|---|---|
| kVA | kW | Ampere |
| 165 | 132 | 238 |
| Prime Power | ||
|---|---|---|
| kVA | kW | Ampere |
| 150 | 120 | 216 |
DIESEL ENGINE
The latest technology engine brands, which comply with ISO 8528, ISO 3046, BS 5514, DIN 6271 standards, have low fuel consumption, are mounted on the fuel pump, and have mechanical or electronic type governors, are used.
| Brand | Baudouin |
| Model | 6M11G165/5 |
| Max. Total Output Power (Standby kW/Prime kW) | 152/138 |
| Cylinder Volume (lt) | 6.75 |
| Cylinder Arrangement | 6 Single Row |
| Bore x Stroke (mm*mm) | 105*130 |
| Governor Type | Electronic |
SIZE AND WEIGHT
| Cabin Group | |
| Width (mm) | 1100 |
| Length (mm) | 3050 |
| Height (mm) | 1700 |
| Weight (Kg) | 2050 |
| Fuel Tank Capacity (Lt) | 240 |
| Group Without Cabin | |
| Width (mm) | 1100 |
| Length (mm) | 2600 |
| Height (mm) | 1450 |
| Weight (Kg) | 1650 |
| Fuel Tank Capacity (Lt) | 240 |
DLTJ-B 220
OUTPUT VALUES
| Standby Power | ||
|---|---|---|
| kVA | kW | Ampere |
| 220 | 176 | 317 |
| Prime Power | ||
|---|---|---|
| kVA | kW | Ampere |
| 200 | 160 | 288 |
DIESEL ENGINE
The latest technology engine brands, which comply with ISO 8528, ISO 3046, BS 5514, DIN 6271 standards, have low fuel consumption, are mounted on the fuel pump, and have mechanical or electronic type governors, are used.| Brand | Baudouin |
| Model | 6M16G220/5 |
| Max. Total Output Power (Standby kW/Prime kW) | 204/185 |
| Cylinder Volume (lt) | 9.72 |
| Cylinder Arrangement | 6 Single Row |
| Bore x Stroke (mm*mm) | 126*130 |
| Governor Type | Electronic |
SIZE AND WEIGHT
| Cabin Group | |
| Width (mm) | 110 |
| Length (mm) | 320 |
| Height (mm) | 170 |
| Weight (Kg) | 2100 |
| Fuel Tank Capacity (Lt) | 350 |
| Group Without Cabin | |
| Width (mm) | 110 |
| Length (mm) | 320 |
| Height (mm) | 170 |
| Weight (Kg) | 2100 |
| Fuel Tank Capacity (Lt) | 350 |
DLTJ-B 250
OUTPUT VALUES
| Standby Power | ||
|---|---|---|
| kVA | kW | Ampere |
| 250 | 200 | 360 |
| Prime Power | ||
|---|---|---|
| kVA | kW | Ampere |
| 227 | 182 | 330 |
DIESEL ENGINE
The latest technology engine brands, which comply with ISO 8528, ISO 3046, BS 5514, DIN 6271 standards, have low fuel consumption, are mounted on the fuel pump, and have mechanical or electronic type governors, are used.
| Brand | Baudouin |
| Model | 6M16G250/5 |
| Max. Total Output Power (Standby kW/Prime kW) | 238/216 |
| Cylinder Volume (lt) | 9.72 |
| Cylinder Arrangement | 6 Single Row |
| Bore x Stroke (mm*mm) | 126*130 |
| Governor Type | Electronic |
SIZE AND WEIGHT
| Cabin Group | |
| Width (mm) | 1300 |
| Length (mm) | 3450 |
| Height (mm) | 2000 |
| Weight (Kg) | 2250 |
| Fuel Tank Capacity (Lt) | 350 |
| Group Without Cabin | |
| Width (mm) | 1300 |
| Length (mm) | 3000 |
| Height (mm) | 1600 |
| Weight (Kg) | 1900 |
| Fuel Tank Capacity (Lt) | 350 |
DLTJ-B 275
OUTPUT VALUES
| Standby Power | ||
|---|---|---|
| kVA | kW | Ampere |
| 275 | 220 | 396 |
| Prime Power | ||
|---|---|---|
| kVA | kW | Ampere |
| 250 | 200 | 360 |
DIESEL ENGINE
The latest technology engine brands, which comply with ISO 8528, ISO 3046, BS 5514, DIN 6271 standards, have low fuel consumption, are mounted on the fuel pump, and have mechanical or electronic type governors, are used.
| Brand | Baudouin |
| Model | 6M16G275/5 |
| Max. Total Output Power (Standby kW/Prime kW) | 264/240 |
| Cylinder Volume (lt) | 9.72 |
| Cylinder Arrangement | 6 Single Row |
| Bore x Stroke (mm*mm) | 126*130 |
| Governor Type | Electronic |
SIZE AND WEIGHT
| Cabin Group | |
| Width (mm) | 1300 |
| Length (mm) | 3450 |
| Height (mm) | 2000 |
| Weight (Kg) | 2300 |
| Fuel Tank Capacity (Lt) | 350 |
| Group Without Cabin | |
| Width (mm) | 1300 |
| Length (mm) | 3000 |
| Height (mm) | 1650 |
| Weight (Kg) | 1950 |
| Fuel Tank Capacity (Lt) | 350 |
DLTJ-B 300
OUTPUT VALUES
| Standby Power | ||
|---|---|---|
| kVA | kW | Ampere |
| 300 | 240 | 506 |
| Prime Power | ||
|---|---|---|
| kVA | kW | Ampere |
| 273 | 218 | 460 |
DIESEL ENGINE
The latest technology engine brands, which comply with ISO 8528, ISO 3046, BS 5514, DIN 6271 standards, have low fuel consumption, are mounted on the fuel pump, and have mechanical or electronic type governors, are used.
| Brand | Baudouin |
| Model | 6M16G300/5 |
| Max. Total Output Power (Standby kW/Prime kW) | 280/255 |
| Cylinder Volume (lt) | 9.72 |
| Cylinder Arrangement | 6 Single Row |
| Bore x Stroke (mm*mm) | 126*130 |
| Governor Type | Electronic |
SIZE AND WEIGHT
| Cabin Group | |
| Width (mm) | 1600 |
| Length (mm) | 3400 |
| Height (mm) | 2200 |
| Weight (Kg) | 2650 |
| Fuel Tank Capacity (Lt) | 500 |
| Group Without Cabin | |
| Width (mm) | 1600 |
| Length (mm) | 3400 |
| Height (mm) | 1650 |
| Weight (Kg) | 2300 |
| Fuel Tank Capacity (Lt) | 500 |
DLTJ-B 350
OUTPUT VALUES
| Standby Power | ||
|---|---|---|
| kVA | kW | Ampere |
| 350 | 280 | 506 |
| Prime Power | ||
|---|---|---|
| kVA | kW | Ampere |
| 318 | 255 | 460 |
DIESEL ENGINE
The latest technology engine brands, which comply with ISO 8528, ISO 3046, BS 5514, DIN 6271 standards, have low fuel consumption, are mounted on the fuel pump, and have mechanical or electronic type governors, are used.
| Brand | Baudouin |
| Model | 6M16G350/5 |
| Max. Total Output Power (Standby kW/Prime kW) | 320/291 |
| Cylinder Volume (lt) | 9.72 |
| Cylinder Arrangement | 6 Single Row |
| Bore x Stroke (mm*mm) | 126*130 |
| Governor Type | Electronic |
SIZE AND WEIGHT
| Cabin Group | |
| Width (mm) | 1600 |
| Length (mm) | 3400 |
| Height (mm) | 2200 |
| Weight (Kg) | 2650 |
| Fuel Tank Capacity (Lt) | 500 |
| Group Without Cabin | |
| Width (mm) | 1600 |
| Length (mm) | 3400 |
| Height (mm) | 1650 |
| Weight (Kg) | 2300 |
| Fuel Tank Capacity (Lt) | 500 |
DLTJ-B 400
OUTPUT VALUES
| Standby Power | ||
|---|---|---|
| kVA | kW | Ampere |
| 400 | 320 | 554 |
| Prime Power | ||
|---|---|---|
| kVA | kW | Ampere |
| 364 | 291 | 504 |
DIESEL ENGINE
The latest technology engine brands, which comply with ISO 8528, ISO 3046, BS 5514, DIN 6271 standards, have low fuel consumption, are mounted on the fuel pump, and have mechanical or electronic type governors, are used.
| Brand | Baudouin |
| Model | 6M21G400/5 |
| Max. Total Output Power (Standby kW/Prime kW) | 385/350 |
| Cylinder Volume (lt) | 12.54 |
| Cylinder Arrangement | 6 Single Row |
| Bore x Stroke (mm*mm) | 127*165 |
| Governor Type | Electronic |
SIZE AND WEIGHT
| Cabin Group | |
| Width (mm) | 1600 |
| Length (mm) | 3400 |
| Height (mm) | 2200 |
| Weight (Kg) | 2850 |
| Fuel Tank Capacity (Lt) | 500 |
| Group Without Cabin | |
| Width (mm) | 1600 |
| Length (mm) | 3400 |
| Height (mm) | 1950 |
| Weight (Kg) | 2450 |
| Fuel Tank Capacity (Lt) | 500 |
DLTJ-B 440
OUTPUT VALUES
| Standby Power | ||
|---|---|---|
| kVA | kW | Ampere |
| 440 | 352 | 634 |
| Prime Power | ||
|---|---|---|
| kVA | kW | Ampere |
| 400 | 320 | 576 |
DIESEL ENGINE
The latest technology engine brands, which comply with ISO 8528, ISO 3046, BS 5514, DIN 6271 standards, have low fuel consumption, are mounted on the fuel pump, and have mechanical or electronic type governors, are used.
| Brand | Baudouin |
| Model | 6M21G440/5 |
| Max. Total Output Power (Standby kW/Prime kW) | 405/368 |
| Cylinder Volume (lt) | 12.54 |
| Cylinder Arrangement | 6 Single Row |
| Bore x Stroke (mm*mm) | 127*165 |
| Governor Type | Electronic |
SIZE AND WEIGHT
| Cabin Group | |
| Width (mm) | 1600 |
| Length (mm) | 3400 |
| Height (mm) | 2200 |
| Weight (Kg) | 2900 |
| Fuel Tank Capacity (Lt) | 500 |
| Group Without Cabin | |
| Width (mm) | 1600 |
| Length (mm) | 3400 |
| Height (mm) | 1950 |
| Weight (Kg) | 2500 |
| Fuel Tank Capacity (Lt) | 500 |
DLTJ-B 500
OUTPUT VALUES
| Standby Power | ||
|---|---|---|
| kVA | kW | Ampere |
| 500 | 400 | 792 |
| Prime Power | ||
|---|---|---|
| kVA | kW | Ampere |
| 455 | 364 | 720 |
DIESEL ENGINE
The latest technology engine brands, which comply with ISO 8528, ISO 3046, BS 5514, DIN 6271 standards, have low fuel consumption, are mounted on the fuel pump, and have mechanical or electronic type governors, are used.
| Brand | Baudouin |
| Model | 6M21G500/5 |
| Max. Total Output Power (Standby kW/Prime kW) | 450/409 |
| Cylinder Volume (lt) | 12.54 |
| Cylinder Arrangement | 6 Single Row |
| Bore x Stroke (mm*mm) | 150*150 |
| Governor Type | Electronic |
SIZE AND WEIGHT
| Cabin Group | |
| Width (mm) | 1800 |
| Length (mm) | 3900 |
| Height (mm) | 2500 |
| Weight (Kg) | 4050 |
| Fuel Tank Capacity (Lt) | 600 |
| Group Without Cabin | |
| Width (mm) | 1800 |
| Length (mm) | 3900 |
| Height (mm) | 2050 |
| Weight (Kg) | 3650 |
| Fuel Tank Capacity (Lt) | 600 |
DLTJ-B 550
OUTPUT VALUES
| Standby Power | ||
|---|---|---|
| kVA | kW | Ampere |
| 550 | 440 | 792 |
| Prime Power | ||
|---|---|---|
| kVA | kW | Ampere |
| 500 | 400 | 720 |
DIESEL ENGINE
The latest technology engine brands, which comply with ISO 8528, ISO 3046, BS 5514, DIN 6271 standards, have low fuel consumption, are mounted on the fuel pump, and have mechanical or electronic type governors, are used.
| Brand | Baudouin |
| Model | 6M21G550/5 |
| Max. Total Output Power (Standby kW/Prime kW) | 490/445 |
| Cylinder Volume (lt) | 12.54 |
| Cylinder Arrangement | 6 Single Row |
| Bore x Stroke (mm*mm) | 150*150 |
| Governor Type | Electronic |
SIZE AND WEIGHT
| Cabin Group | |
| Width (mm) | 1800 |
| Length (mm) | 3900 |
| Height (mm) | 2500 |
| Weight (Kg) | 4050 |
| Fuel Tank Capacity (Lt) | 600 |
| Group Without Cabin | |
| Width (mm) | 1800 |
| Length (mm) | 3900 |
| Height (mm) | 2050 |
| Weight (Kg) | 3650 |
| Fuel Tank Capacity (Lt) | 600 |
DLTJ-B 660
OUTPUT VALUES
| Standby Power | ||
|---|---|---|
| kVA | kW | Ampere |
| 660 | 528 | 950 |
| Prime Power | ||
|---|---|---|
| kVA | kW | Ampere |
| 600 | 480 | 864 |
DIESEL ENGINE
The latest technology engine brands, which comply with ISO 8528, ISO 3046, BS 5514, DIN 6271 standards, have low fuel consumption, are mounted on the fuel pump, and have mechanical or electronic type governors, are used.
| Brand | Baudouin |
| Model | 6M33G660/5 |
| Max. Total Output Power (Standby kW/Prime kW) | 587/534 |
| Cylinder Volume (lt) | 19.6 |
| Cylinder Arrangement | 6 Single Row |
| Bore x Stroke (mm*mm) | 150*185 |
| Governor Type | Electronic |
SIZE AND WEIGHT
| Cabin Group | |
| Width (mm) | 1900 |
| Length (mm) | 4200 |
| Height (mm) | 2500 |
| Weight (Kg) | 5400 |
| Fuel Tank Capacity (Lt) | 700 |
| Group Without Cabin | |
| Width (mm) | 1900 |
| Length (mm) | 4200 |
| Height (mm) | 2100 |
| Weight (Kg) | 4900 |
| Fuel Tank Capacity (Lt) | 700 |
DLTJ-B 725
OUTPUT VALUES
| Standby Power | ||
|---|---|---|
| kVA | kW | Ampere |
| 725 | 580 | 1030 |
| Prime Power | ||
|---|---|---|
| kVA | kW | Ampere |
| 659 | 527 | 936 |
DIESEL ENGINE
The latest technology engine brands, which comply with ISO 8528, ISO 3046, BS 5514, DIN 6271 standards, have low fuel consumption, are mounted on the fuel pump, and have mechanical or electronic type governors, are used.
| Brand | Baudouin |
| Model | 6M33G715/5 |
| Max. Total Output Power (Standby kW/Prime kW) | 633/575 |
| Cylinder Volume (lt) | 19.6 |
| Cylinder Arrangement | 6 Single Row |
| Bore x Stroke (mm*mm) | 150*185 |
| Governor Type | Electronic |
SIZE AND WEIGHT
| Cabin Group | |
| Width (mm) | 1900 |
| Length (mm) | 4200 |
| Height (mm) | 2500 |
| Weight (Kg) | 5450 |
| Fuel Tank Capacity (Lt) | 700 |
| Group Without Cabin | |
| Width (mm) | 1900 |
| Length (mm) | 4200 |
| Height (mm) | 2100 |
| Weight (Kg) | 4950 |
| Fuel Tank Capacity (Lt) | 700 |
DLTJ-B 750
OUTPUT VALUES
| Standby Power | ||
|---|---|---|
| kVA | kW | Ampere |
| 750 | 600 | 1084 |
| Prime Power | ||
|---|---|---|
| kVA | kW | Ampere |
| 682 | 545 | 985 |
DIESEL ENGINE
The latest technology engine brands, which comply with ISO 8528, ISO 3046, BS 5514, DIN 6271 standards, have low fuel consumption, are mounted on the fuel pump, and have mechanical or electronic type governors, are used.
| Brand | Baudouin |
| Model | 6M33G750/5 |
| Max. Total Output Power (Standby kW/Prime kW) | 670/609 |
| Cylinder Volume (lt) | 19.6 |
| Cylinder Arrangement | 6 Single Row |
| Bore x Stroke (mm*mm) | 150*185 |
| Governor Type | Electronic |
SIZE AND WEIGHT
| Cabin Group | |
| Width (mm) | 1900 |
| Length (mm) | 4200 |
| Height (mm) | 2500 |
| Weight (Kg) | 5450 |
| Fuel Tank Capacity (Lt) | 700 |
| Group Without Cabin | |
| Width (mm) | 1900 |
| Length (mm) | 4200 |
| Height (mm) | 2100 |
| Weight (Kg) | 4950 |
| Fuel Tank Capacity (Lt) | 700 |
DLTJ-B 825
OUTPUT VALUES
| Standby Power | ||
|---|---|---|
| kVA | kW | Ampere |
| 825 | 660 | 1188 |
| Prime Power | ||
|---|---|---|
| kVA | kW | Ampere |
| 750 | 600 | 1080 |
DIESEL ENGINE
The latest technology engine brands, which comply with ISO 8528, ISO 3046, BS 5514, DIN 6271 standards, have low fuel consumption, are mounted on the fuel pump, and have mechanical or electronic type governors, are used.
| Brand | Baudouin |
| Model | 6M33G825/5 |
| Max. Total Output Power (Standby kW/Prime kW) | 725/659 |
| Cylinder Volume (lt) | 19.6 |
| Cylinder Arrangement | 6 Single Row |
| Bore x Stroke (mm*mm) | 150*185 |
| Governor Type | Electronic |
SIZE AND WEIGHT
| Cabin Group | |
| Width (mm) | 2000 |
| Length (mm) | 4400 |
| Height (mm) | 2650 |
| Weight (Kg) | 7650 |
| Fuel Tank Capacity (Lt) | 1000 |
| Group Without Cabin | |
| Width (mm) | 2000 |
| Length (mm) | 4400 |
| Height (mm) | 2400 |
| Weight (Kg) | 6550 |
| Fuel Tank Capacity (Lt) | 1000 |
DLTJ-B 900
OUTPUT VALUES
| Standby Power | ||
|---|---|---|
| kVA | kW | Ampere |
| 900 | 720 | 1296 |
| Prime Power | ||
|---|---|---|
| kVA | kW | Ampere |
| 818 | 655 | 1173 |
DIESEL ENGINE
The latest technology engine brands, which comply with ISO 8528, ISO 3046, BS 5514, DIN 6271 standards, have low fuel consumption, are mounted on the fuel pump, and have mechanical or electronic type governors, are used.
| Brand | Baudouin |
| Model | 12M26G900/5 |
| Max. Total Output Power (Standby kW/Prime kW) | 793/721 |
| Cylinder Volume (lt) | 31.8 |
| Cylinder Arrangement | 12V |
| Bore x Stroke (mm*mm) | 150*150 |
| Governor Type | Electronic |
SIZE AND WEIGHT
| Cabin Group | |
| Width (mm) | 2100 |
| Length (mm) | 5200 |
| Height (mm) | 2750 |
| Weight (Kg) | 7860 |
| Fuel Tank Capacity (Lt) | 1400 |
| Group Without Cabin | |
| Width (mm) | 2100 |
| Length (mm) | 5200 |
| Height (mm) | 2400 |
| Weight (Kg) | 6760 |
| Fuel Tank Capacity (Lt) | 1400 |
DLTJ-B 1000
OUTPUT VALUES
| Standby Power | ||
|---|---|---|
| kVA | kW | Ampere |
| 1000 | 800 | 1440 |
| Prime Power | ||
|---|---|---|
| kVA | kW | Ampere |
| 909 | 727 | 1296 |
DIESEL ENGINE
The latest technology engine brands, which comply with ISO 8528, ISO 3046, BS 5514, DIN 6271 standards, have low fuel consumption, are mounted on the fuel pump, and have mechanical or electronic type governors, are used.
| Brand | Baudouin |
| Model | 12M26G1000/5 |
| Max. Total Output Power (Standby kW/Prime kW) | 902/820 |
| Cylinder Volume (lt) | 31.8 |
| Cylinder Arrangement | 12V |
| Bore x Stroke (mm*mm) | 150*150 |
| Governor Type | Electronic |
SIZE AND WEIGHT
| Cabin Group | |
| Width (mm) | 2100 |
| Length (mm) | 5200 |
| Height (mm) | 2750 |
| Weight (Kg) | 8140 |
| Fuel Tank Capacity (Lt) | 1400 |
| Group Without Cabin | |
| Width (mm) | 2100 |
| Length (mm) | 5200 |
| Height (mm) | 2400 |
| Weight (Kg) | 7040 |
| Fuel Tank Capacity (Lt) | 1400 |
DLTJ-B 1125
OUTPUT VALUES
| Standby Power | ||
|---|---|---|
| kVA | kW | Ampere |
| 1125 | 900 | 1584 |
| Prime Power | ||
|---|---|---|
| kVA | kW | Ampere |
| 1023 | 818 | 1468 |
DIESEL ENGINE
The latest technology engine brands, which comply with ISO 8528, ISO 3046, BS 5514, DIN 6271 standards, have low fuel consumption, are mounted on the fuel pump, and have mechanical or electronic type governors, are used.
| Brand | Baudouin |
| Model | 12M26G1100/5 |
| Max. Total Output Power (Standby kW/Prime kW) | 973/885 |
| Cylinder Volume (lt) | 31.8 |
| Cylinder Arrangement | 12V |
| Bore x Stroke (mm*mm) | 150*150 |
| Governor Type | Electronic |
SIZE AND WEIGHT
| Cabin Group | |
| Width (mm) | 2100 |
| Length (mm) | 5200 |
| Height (mm) | 2750 |
| Weight (Kg) | 8300 |
| Fuel Tank Capacity (Lt) | 1400 |
| Group Without Cabin | |
| Width (mm) | 2100 |
| Length (mm) | 5200 |
| Height (mm) | 2400 |
| Weight (Kg) | 7200 |
| Fuel Tank Capacity (Lt) | 1400 |
DLTJ-B 1250
OUTPUT VALUES
| Standby Power | ||
|---|---|---|
| kVA | kW | Ampere |
| 1250 | 1000 | 1800 |
| Prime Power | ||
|---|---|---|
| kVA | kW | Ampere |
| 1136 | 909 | 1656 |
DIESEL ENGINE
The latest technology engine brands, which comply with ISO 8528, ISO 3046, BS 5514, DIN 6271 standards, have low fuel consumption, are mounted on the fuel pump, and have mechanical or electronic type governors, are used.
| Brand | Baudouin |
| Model | 12M33G1250/5 |
| Max. Total Output Power (Standby kW/Prime kW) | 1108/1007 |
| Cylinder Volume (lt) | 39.2 |
| Cylinder Arrangement | 12V |
| Bore x Stroke (mm*mm) | 150*185 |
| Governor Type | Electronic |
SIZE AND WEIGHT
| Cabin Group | |
| Width (mm) | 2350 |
| Length (mm) | 5200 |
| Height (mm) | 2950 |
| Weight (Kg) | 9220 |
| Fuel Tank Capacity (Lt) | 1500 |
| Group Without Cabin | |
| Width (mm) | 2350 |
| Length (mm) | 5200 |
| Height (mm) | 2500 |
| Weight (Kg) | 8120 |
| Fuel Tank Capacity (Lt) | 1500 |

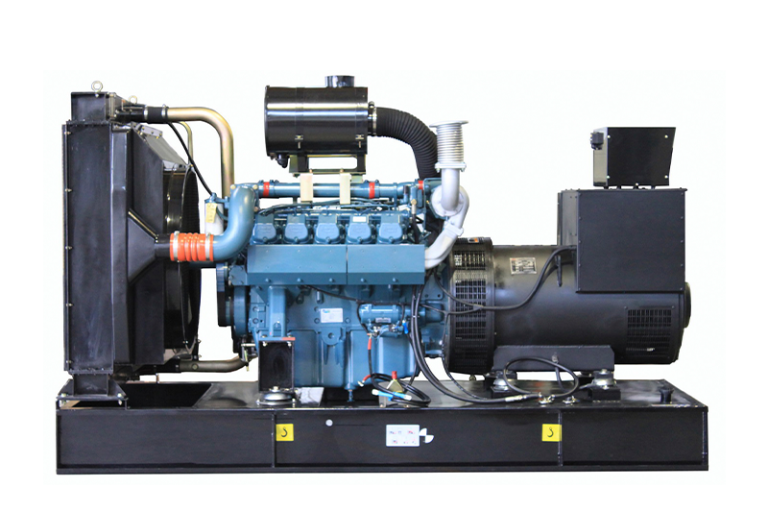

Cabin Features
Generator chassis are manufactured from steel with a special modular design. The tank is mounted on the chassis. Engine alternator radiator connections are made with vibration mounts and vibration is reduced to a minimum level. Special chassis and fuel tank designs can be made in line with requests.
| Emergency Stop Button | |
| Control Panel Window | |
| Special Sound Insulation | |
| Exhaust Muffler | |
| Special Air Ducts for Cooling | |
| Corrosion and Rust Resistant Electrostatic Paint Coating | |

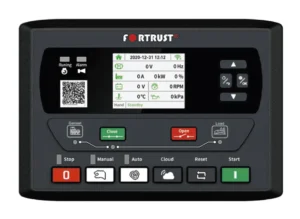

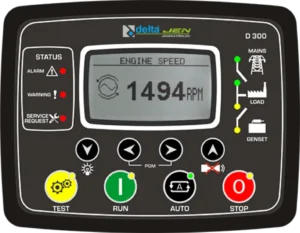

Control Panel
Generator control panels are easy to use, secure software that can be updated, robust and long-lasting panels. Optionally, it can be controlled remotely with ETHERNET and GPRS. The panel body is made of steel sheet and painted with electrostatic powder paint. The electronic parts are isolated and have a waterproof design.
| Features | |
| Automatic Control System with LCD Screen | |
| Remote Monitoring and Control Possibility | |
| Multifunctional Business Opportunity | |
| Possibility to Choose Different Languages | |
| Programmable via USB, RS-232 and GSM | |
